Metal chips

Swarf treatment groups

COLIBRÌ

Standard metal chips treatment groups Colibrì series
Metal chips

Compact group for the separation of short metal chips from the coolant. It is a standard group with reduced dimensions for optimizing spaces in the factory.



COLIBRÌ
  • Easy to move thanks to the palletized base
  • They meet the needs of space optimization
  • Characteristics compliant with the requirements of the Industry 4.0 plan
  • Proven technology
  • Quick delivery
  • Plug & play

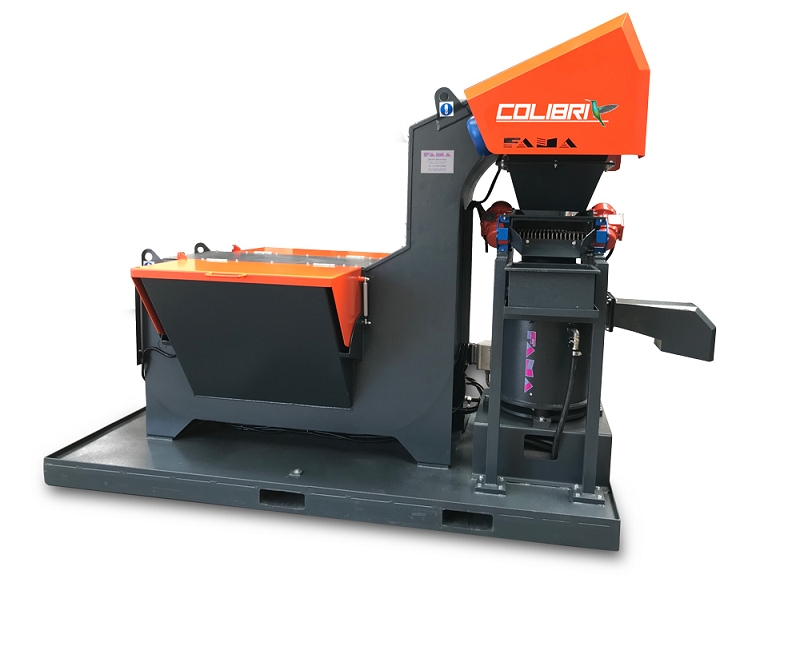

The COLIBRÌ compact group is a centrifugation unit for short chips contained in small sized bins which are discharged inside the group via two side pockets.

The short chips, soaked in coolant, are loaded into the centrifuge by means of a pallet conveyor. The coolant recovered from the centrifuge is stored in the integrated self-cleaning collection tank.

If the chips contain pieces, it is possible to equip the COLIBRÌ with a sieve to protect the centrifuge.

COLIBRÌ is mounted on a palletized platform so as to be easily movable and is delivered already wired complete with electrical control panel and ready for use.


EXPLORE

download Colibrì produts sheet [ pdf - 572 Kb ]

TYPE
COLIBRÃfÆ'Ã?â?TÃfâ? Ã¢â,¬â
DIMENSIONS
2700x1450x2100H mm
POWER
3 kW
VOLTAGE
230/400 V
POWER SUPPLY
Continuous
WEIGHT
900 kg
HOURLY PRODUCTION

Q = 400 l/h Brass Steel Aluminium Stainless steel Copper Cast iron
density [kg/dmc] 0,45 ÷ 1 0,50 ÷ 1 0,15 ÷ 0,30 0,40 ÷ 1 0,25 ÷ 1 =
Kg/h 90 ÷ 200 100 ÷ 200 30 ÷ 60 240 ÷ 200 50 ÷ 200 =

The data in kg/h is approximate and in any case depends on the density of the swarf, the shape, the oil content and the type of coolant. the density data considered are hypothetical, based on an experimental average of the data in our possession.

POSSIBLE APPLICATIONS

AVAILABLE OPTIONALS
